Closing Assist, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

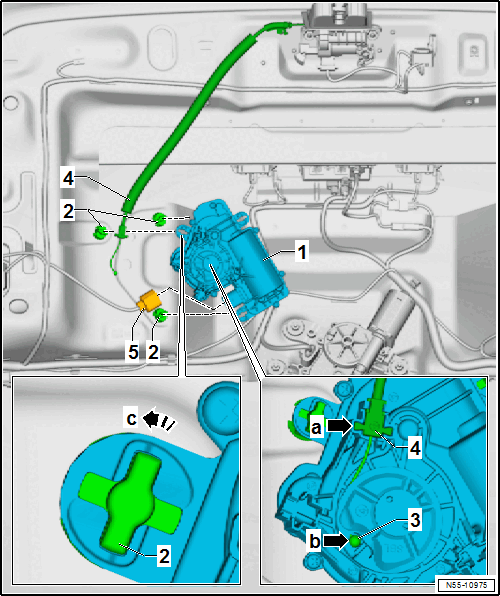

-- Push the closing assist -1- on the clips -2-.
-- Turn the clips -2- 90 degrees -arrow c-.
-- Insert the release cables -3- in the mount -arrow b-.
-- Turn the mount slightly so that the tension in the release cable -4- is released.
-- Insert the retainer from the release cable -4- in the closing assist -1- -arrow a-.
-- Connect the connector -5- with the closing assist -1-.
- Perform a function test on the unlocking components before closing the rear lid.
