Hinge, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

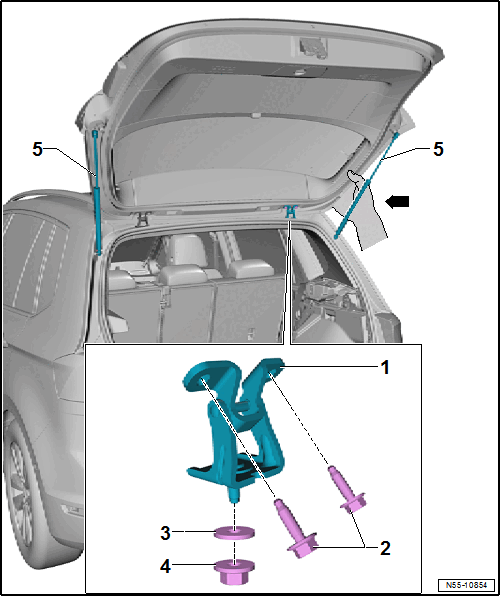

-- Lower the headliner near the hinge mount. Refer to HEADLINER, REMOVING AND INSTALLING .

-- The headliner can now be lowered far enough so that the hex nut -4- can be removed without damaging the headliner.

-- Loosen the hex nuts -4- and bolts -2-, but do not remove them.

NOTE:

The roof edge and the upper edge of the rear lid are to be taped off to prevent paint damage.

For the following work procedures, a second technician must hold the rear lid at the bottom -arrow-.

The gas-filled strut -5- remains installed.

-- Remove the hex nut -4- and bolts -2-.

-- Remove the hinge -1-.
