Gas-Filled Strut, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

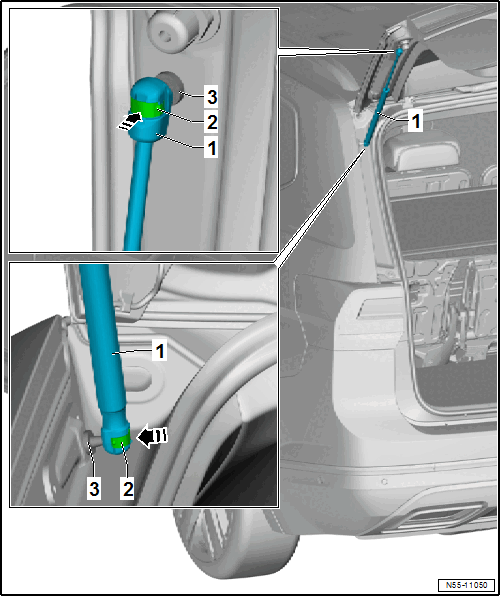

- The spring clips -2- are slid over the ball sockets of the gas-filled strut -1-.
-- Push the gas-filled strut ball socket -1- onto the ball stud -3- until the ball socket clicks into place on the ball stud.
