Support Rod, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

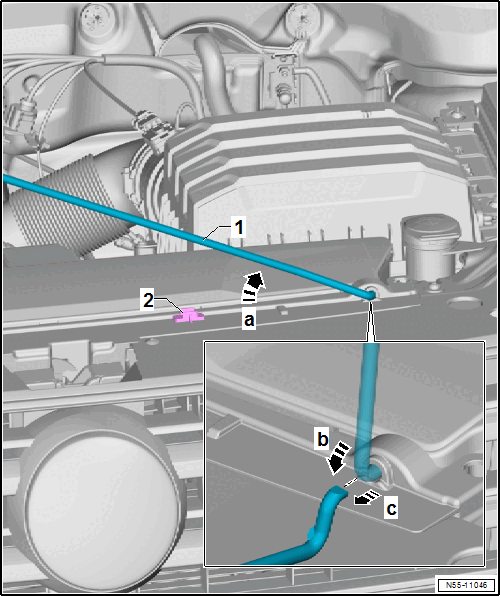

GWWN55-11046Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open and support the hood.

-- Lift the support rod -1- from the retainer -2- in direction of -arrow a-.

-- First pivot the support rod 90° in direction of -arrow b- and then pull from the opening in direction of -arrow c-.
