Support Rod, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

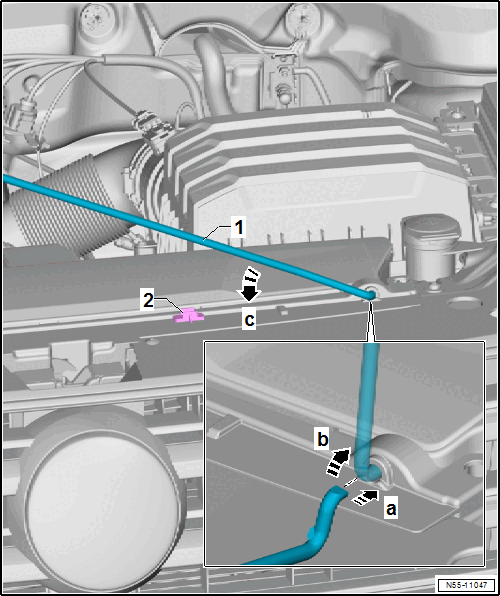

GWWN55-11047Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First push the support rod in the opening -arrow a- and then pivot 90° in direction of -arrow b-.

-- Push the support rod -1- into the retainer -2- in direction of -arrow a-.
