Release Cable, Removing And Installing, Right Latch To Release Lever, From 02/24/2020: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- The microswitch is installed on the latch.

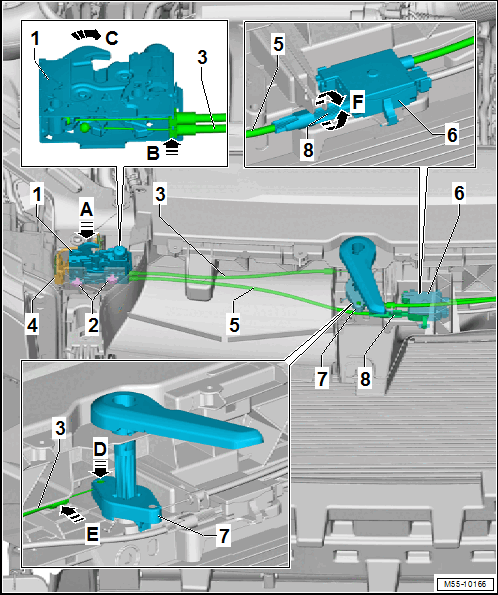

-- Engage the release cable -3- on the release lever in direction of -arrow D- and lock it in place in direction of -arrow E-.
-- Engage the release cable -3- on the latch -1- in direction of -C arrow- and lock it in place in direction of -arrow B-.
-- Guide the latch -1- into the lock carrier in direction of -arrow A-.
-- Install the new bolts -2-.
-- Connect the engine hood contact switch connector -4-.
-- Adjust the synchronous movement for the latches at the adjustment threads -8- in direction of -arrow F-.
-- Perform a function test before closing the hood.
