Release Cable, Removing And Installing, Left Latch To Release Lever, From 02/24/2020: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the center air guide. Refer to -item 3- OVERVIEW - LOCK CARRIER, FROM 02/24/2020 .

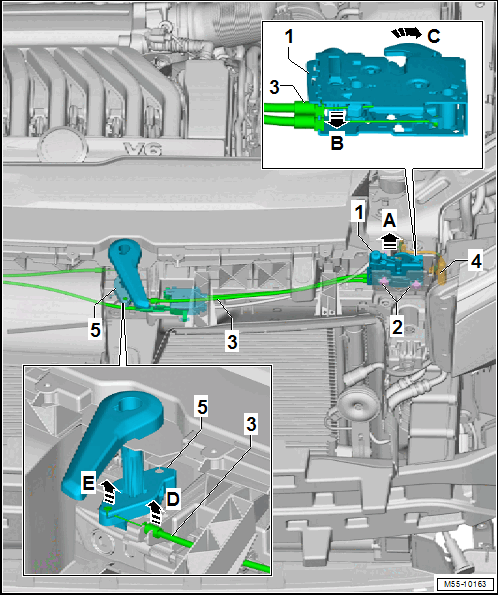

-- Release and disconnect the connector -4- for the contact switch.
-- Remove the bolts -2- from the lock carrier.
-- Remove the latch -1- slightly upward in direction of -arrow A-.
-- Unclip the release cable -3- from the latch in direction of -arrow B- and disengage in direction of -arrow C-.
-- Unclip the release cable -3- from the release lever -5- in direction of -arrow D- and disengage in direction of -arrow E-.
