Release Cable, Removing And Installing, Left Latch To Release Lever, From 02/24/2020: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

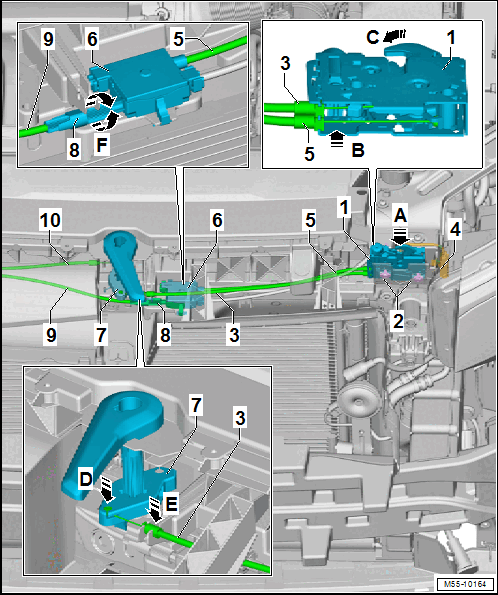

-- Engage the release cable -3 - onto the release lever -7- in direction of -arrow D- and clip it in in direction of -arrow E-.
-- Engage the release cable -3 - onto the latch -1- in direction of -arrow C- and clip it in -arrow B-.
-- Guide the latch -1- into the lock carrier in direction of -arrow A-.
-- Install the new bolts -2-.
-- Connect the engine hood contact switch connector -4-.
-- Adjust the synchronous movement for the latches at the adjustment threads -8- in direction of -arrow F-.
-- Perform a function test before closing the hood.
