Release Cable Coupling With Release Cables, Removing And Installing, From 02/24/2020: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the center air guide. Refer to -item 3- OVERVIEW - LOCK CARRIER, FROM 02/24/2020 .

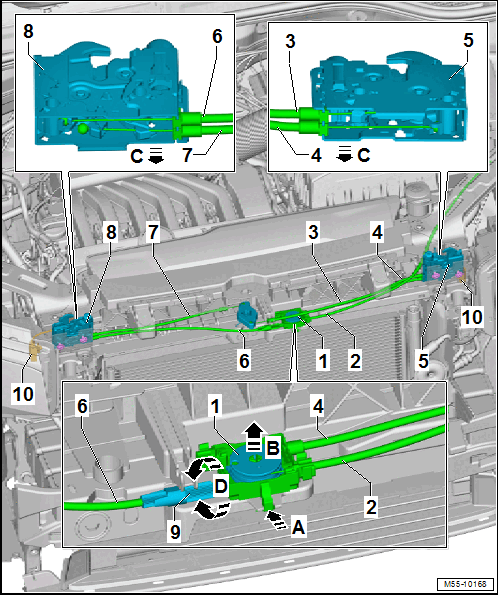

-- Release and disconnect the connector -10- for the contact switch.
-- Remove the bolts on the lock carrier and remove the latches -5 and 8- slightly upward.
-- Unclip the release cables -4 and 6- from the latches in direction of -arrow C- and disengage.
-- Release the release cable coupling -1- in direction of -arrow A- and remove it from the lock carrier in direction of -arrow B-.
-- Unclip and disengage the release cable -2- from the release cable coupling -1-.
