Release Cable Between Release Cable Coupling And Mounting Bracket, Removing And Installing, From 02/24/2020: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, FROM 02/24/2020 .
-- Remove the center air guide. Refer to -item 3- OVERVIEW - LOCK CARRIER, FROM 02/24/2020 .

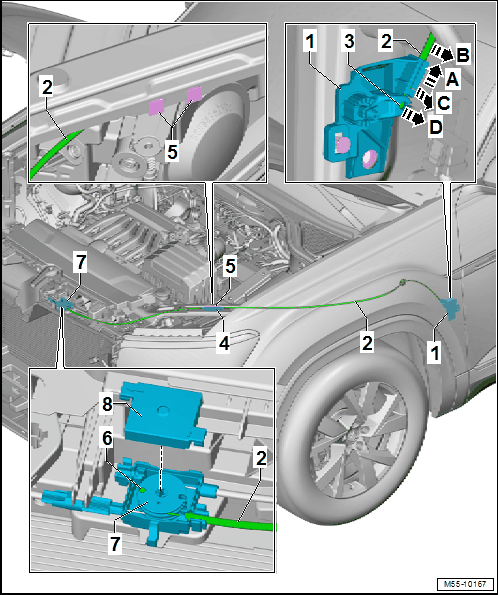

-- Lift the cap -8- off the release cable coupling -7-.
-- Unclip the release cable -2- from the mounting bracket -1- in direction of -arrow A- and disengage in direction of -arrow B-.
-- Disengage the release cable -2- from the mounting bracket -1- in direction of -arrow C- and remove in direction of -arrow D-.
-- Detach the bracket -5- from the support.
-- Release and disengage -6- the release cable -2- from the release cable coupling -7-.
-- Pull the release cable -2- out toward the front using an assisting wire or cord.
