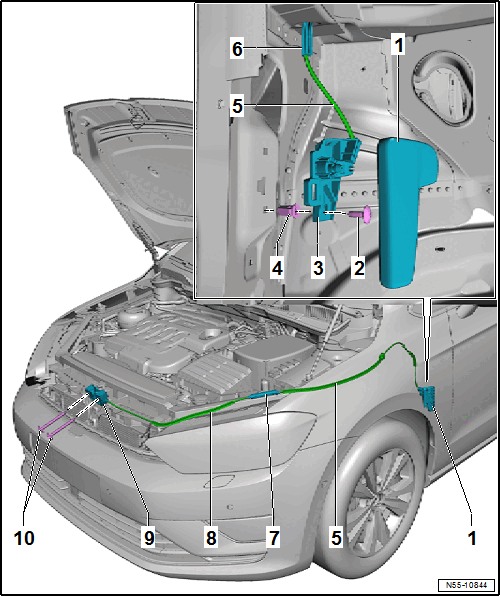

Overview - Release Cable, Through 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Operating Lever
- Removing and Installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 1
- Mounting Bracket
- Expanding Nut
- Quantity: 2
- Release Cable
- From the mounting bracket -3- to the coupling -7-
- Grommet
- Clutch
- Release Cable
- From the coupling -7- to the latch -9-
- Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING, THROUGH 03/01/2020 .
- Bolt
- 12 Nm
- Self-locking, after each removal the bolt must be replaced
- Quantity: 2
