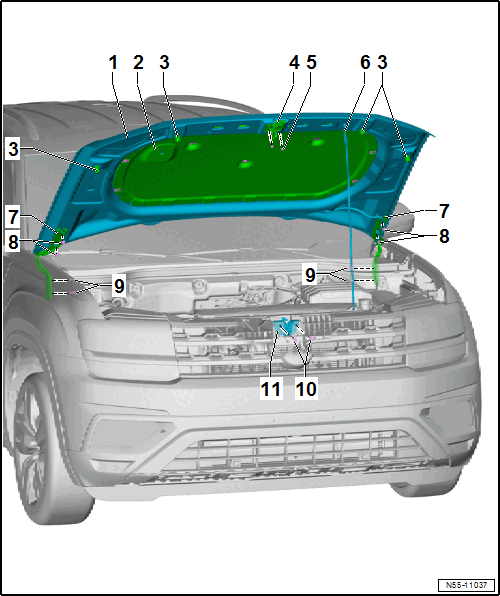

Overview - Hood, Through 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
- Insulation
- Removing and Installing. Refer to INSULATION, REMOVING AND INSTALLING, THROUGH 02/24/2020 .
- Adjusting Buffer
- There is always a protective film on the adjusting buffer support point
- Quantity: 2
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING, THROUGH 02/24/2020 .
- Nut
- 12 Nm
- Quantity: 3
- Support Rod
- Removing and Installing. Refer to SUPPORT ROD, REMOVING AND INSTALLING .
- Hinge
- Removing and Installing. Refer to HINGE, REMOVING AND INSTALLING .
- Nut
- 22 Nm
- For attaching the hood
- Quantity: 2 on each side
- Bolt
- 22 Nm
- For attaching the hinge
- Quantity: 2 on each side
- Bolt
- 12 Nm
- Self-locking, after each removal the bolt must be replaced
- Quantity: 2
- Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING, THROUGH 03/01/2020 .
