Latch, Removing And Installing, Through 03/01/2020: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

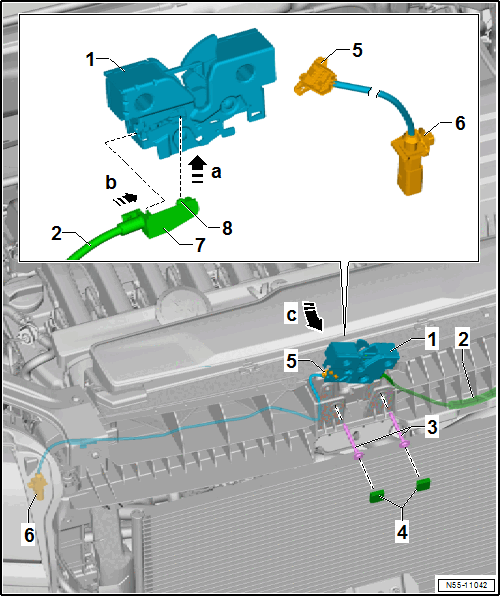

-- Install the microswitch -5- in the latch.
-- Engage the cable -8- in direction of -arrow a- and clip the bracket -7- in the latch -1- in direction of -arrow b-.
-- Guide the latch -1- into the lock carrier in direction of -arrow c-.
-- Install the new bolts -3-.
-- Connect the hood contact switch connector -6-.
-- Install the release cable. Refer to RELEASE CABLE, REMOVING AND INSTALLING, THROUGH 02/24/2020 .
-- Adjust the latch. Refer to HOOD, ADJUSTING, THROUGH 02/24/2020 .
-- Before closing the hood, make sure the release lever and the cable are working correctly.
