Insulation, Removing And Installing, Through 02/24/2020: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

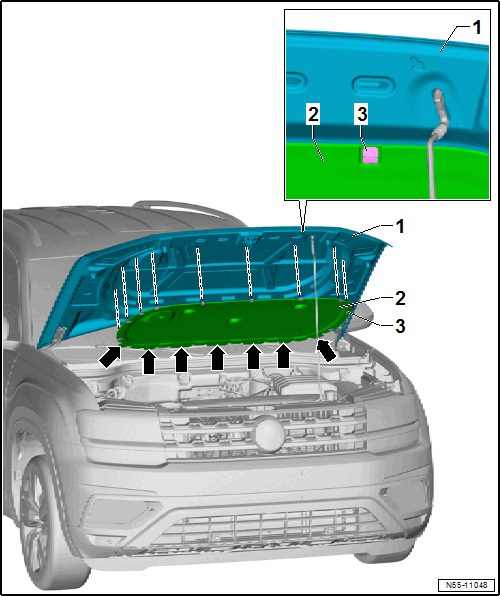

When installing the noise insulation -2-, be sure to install the clips -3- with the wide side facing out.

-- Slide the insulation -2- with the mounting tabs -arrows- into the oblong holes.

-- Lock all the clips -3- into the hood -1-.
