Insulation, Removing And Installing, From 02/24/2020: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

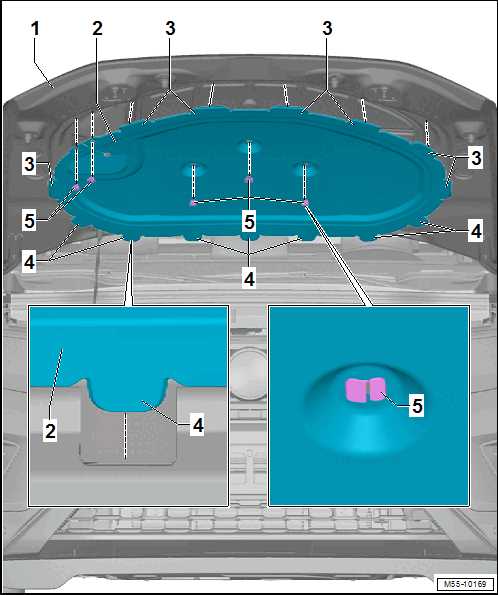

-- Pry the clips -5- out of the hood -1- with the Pry Lever:80-200
.
-- Remove the tabs -3- at the top from the hood mounts -1-.
-- Remove the left and right side tabs -3- from the hood mounts -1-.
-- Remove the tabs -4- at the bottom from of the hood mount -1-.
-- Remove the noise insulation -2-.
