Hood, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

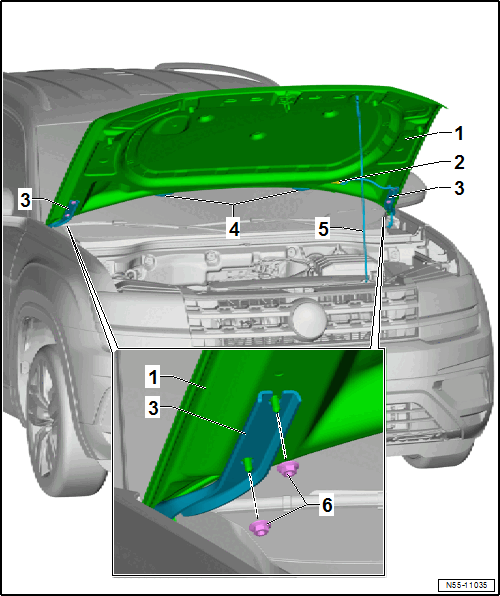

GWWN55-11035Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install the hood -1- in reverse order of removal.

NOTE:

Route the line -2- in a curve. If the line is installed twisted, it will kink.

-- Adjust the hood -1-. Refer to HOOD, ADJUSTING .
