Adjusting Buffer, Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

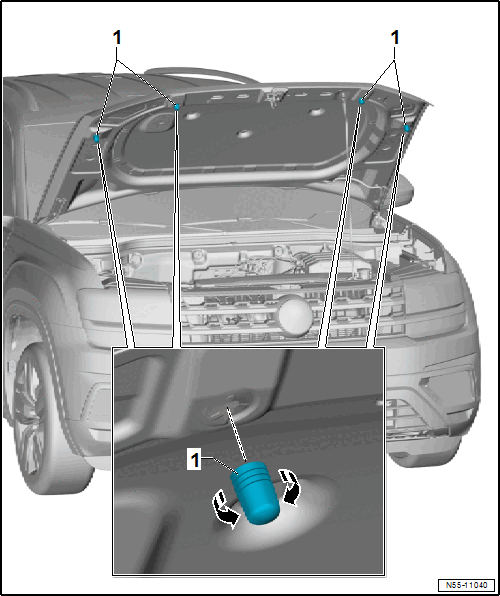

GWWN55-11040Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the adjusting buffer -1- in direction of -arrows- to adjust.

-- The striker can be reinstalled and adjusted after adjusting the hood -2-. Refer to Striker, Adjusting .
