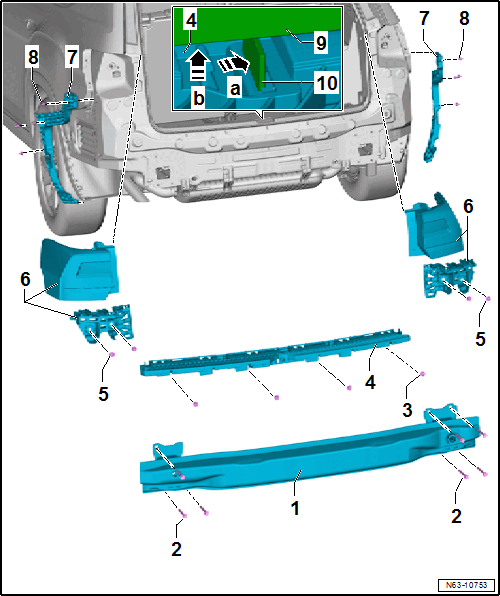

Overview - Impact Member
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Different versions depending on the model. Refer to the appropriate Electronic Parts Information for the allocation.
- Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
- Vehicles with trailer hitch. Refer to TRAILER HITCH .
- Bolts
- 40 Nm
- Quantity: 4 on the right side
- Quantity: 3 on the left side
- Nut
- 3.5 Nm
- Quantity: 4
- Center Guide
- Is aligned with the spacer -7- by folding -arrow a- to the rear lid -8- -arrow b-.
- Nut
- 3.5 Nm
- Quantity: 2 on each side
- Guide
- On the right and left sides with the tail lamp
- Guide
- Right and left
- Nut
- 3.5 Nm
- Quantity: 4 on each side
