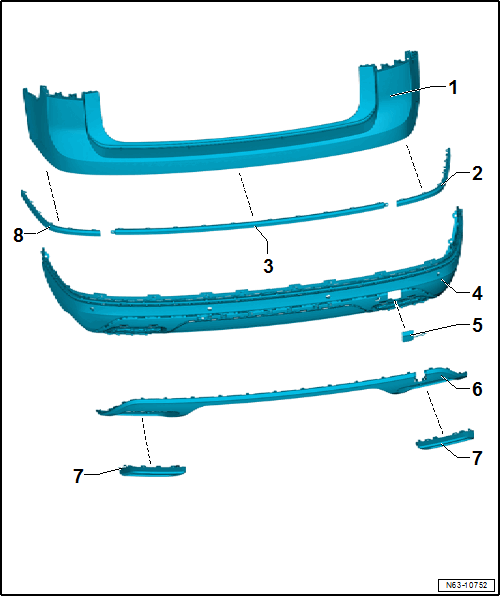

Overview - Attachments
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Different versions depending on the model. Refer to the appropriate Electronic Parts Information for the allocation.
- Bumper Cover
- Upper Section
- PP/EPDM material
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Trim Molding
- Right
- Secured in the bumper cover
- To be removed only with bumper cover removed
- Trim Molding
- Center
- Secured in the bumper cover
- To be removed only with bumper cover removed
- Spoiler
- PP/EPDM material
- Secured in the bumper cover
- To be removed only with bumper cover removed
- Cap
- Towing eye
- Engaged in bumper cover
- Diffuser
- Secured in the bumper cover
- To be removed only with bumper cover removed
- Trim
- Secured in the bumper cover
- To be removed only with bumper cover removed
- Trim Molding
- Left
- Secured in the bumper cover
- To be removed only with bumper cover removed
