Overview - Attachments, R-Line

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

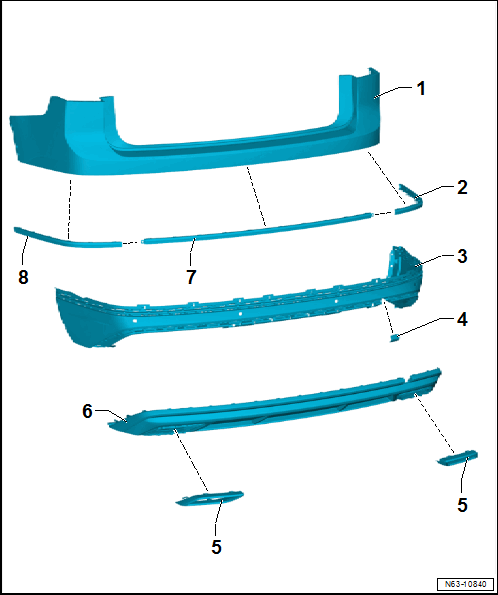

Fig 1: Exploded View Of Rear Bumper Cover Attachments, R-Line
GWWN63-10840Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bumper Cover
  2. Trim Molding
    • Right
    • Secured in the bumper cover
    • To be removed only with bumper cover removed
  3. Spoiler
    • Secured in the bumper cover
    • To be removed only with bumper cover removed
  4. Cap
    • Towing eye
    • Engaged in bumper cover
  5. Trim
    • Left and right
    • Secured in the bumper cover
    • To be removed only with bumper cover removed
  6. Diffuser
    • Secured in the bumper cover
    • To be removed only with bumper cover removed
  7. Trim Molding
    • Center
    • Secured in the bumper cover
    • To be removed only with bumper cover removed
  8. Trim Molding
    • Left
    • Secured in the bumper cover
    • To be removed only with bumper cover removed
