Impact Member, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

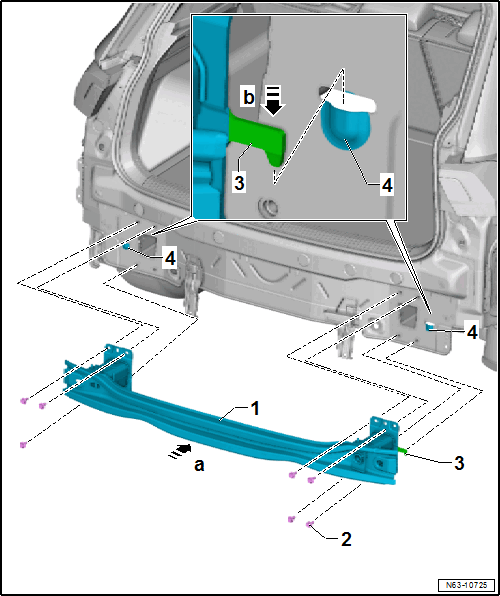

-- Remove the bolts -2-.
-- Lift the impact member -1- with the guides -3- upward in direction of -a arrows- out of the tabs -4- in the cross panel.
-- Remove the impact member -1- from the vehicle in direction of -arrow b-.
