Reflector, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

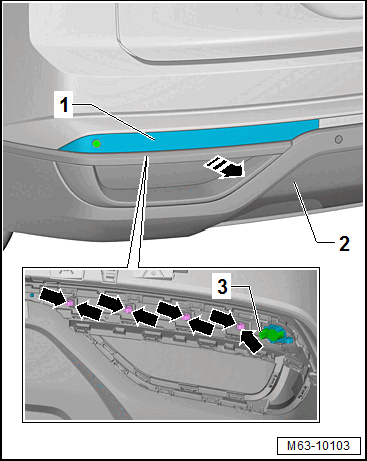

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Release and disconnect the connector from the parking aid sensor -3-.
-- Release the retainers -arrows-.
-- Remove the reflector -1- from the bumper cover -2-.
-- Remove the rear parking aid sensor. Refer to the appropriate Service Information .
