Center Guide, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped, remove the Access/Start System Antenna in Rear Bumper - R136-. Refer to ACCESS/START SYSTEM ANTENNA IN REAR BUMPER -R136-, REMOVING AND INSTALLING .

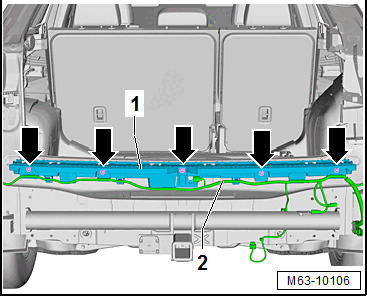

-- Free up the wiring harness -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

-- Remove the center guide -1-.
