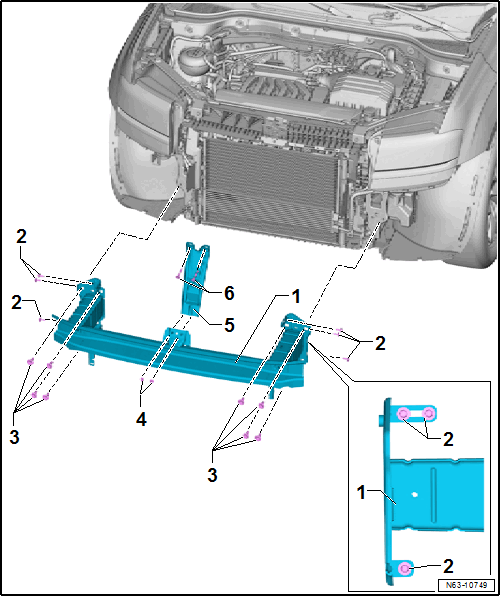

Overview - Impact Member, Through 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Different versions depending on the model. Refer to the appropriate Electronic Parts Information for the allocation.
- Impact Member
- Bolt
- 8 Nm
- Quantity: 3 on each side
- Bolt
- 55 Nm
- Quantity: 4 on each side
- Bolt
- 8 Nm
- Quantity: 2
- Tension Strut
- Bolt
- 8 Nm
- Threaded connection together with the latch
- Quantity: 2
