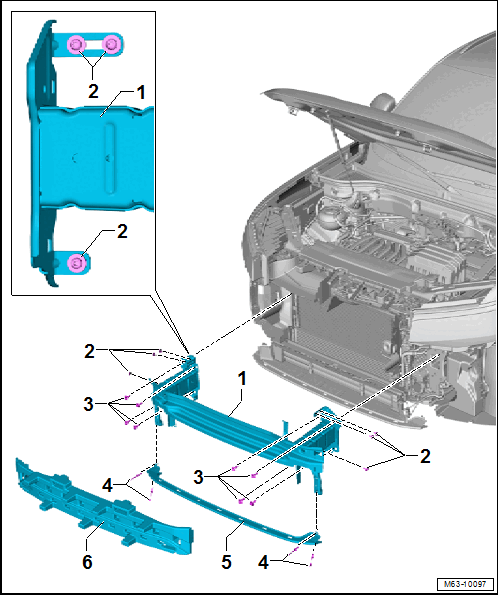

Overview - Impact Member, From 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Impact Member
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Bolt
- 8 Nm
- Quantity: 3 on each side
- Bolt
- 55 Nm
- Quantity: 4 on each side
- Pop Rivet
- Left and right
- Pull in with the Pop Rivet Pliers:V.A.G 1753B
- Quantity: 2
- Crossmember
- Foam Piece
