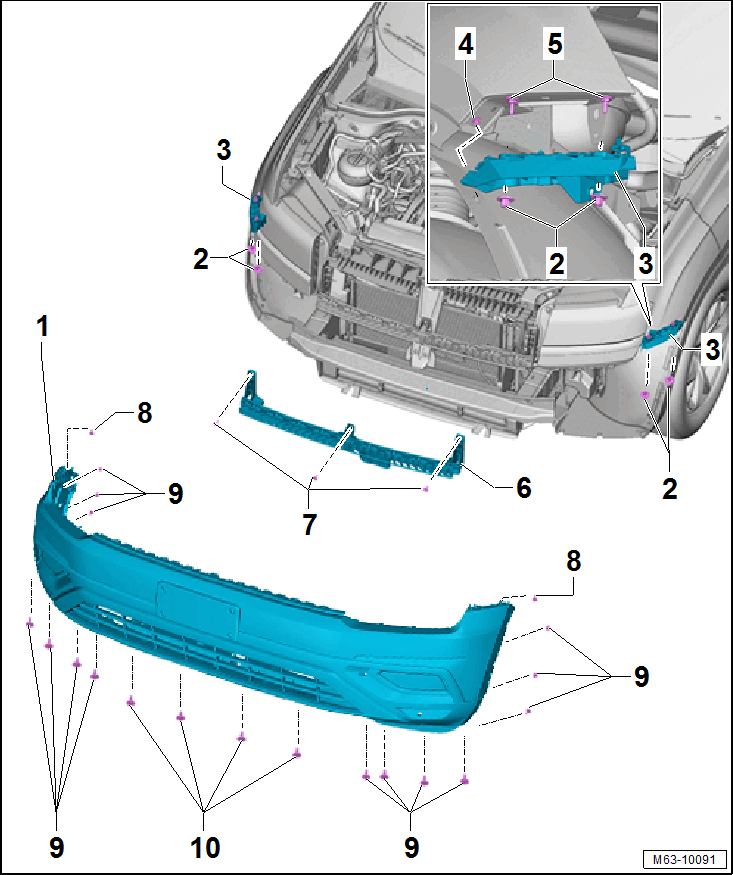

Overview - Bumper Cover, Through 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on model version, there are minor differences in the bumper cover.
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Nut
- 2 Nm
- Quantity: 2 on each side
- Guide
- Left and right
- Expanding Nut
- Quantity: 2 on each side
- Double Bolt
- 6 Nm
- Installed with a threaded connection
- Quantity: 2 on each side
- Center Guide
- Bolt
- 8 Nm
- Quantity: 3
- Bolt
- 2 Nm
- Left and right
- Pointing upward
- Bolt
- 2 Nm
- Attached to the wheel housing liner
- Quantity: 7 on each side
- Bolt
- 2 Nm
- Attached to the lock carrier
- Quantity: 4
