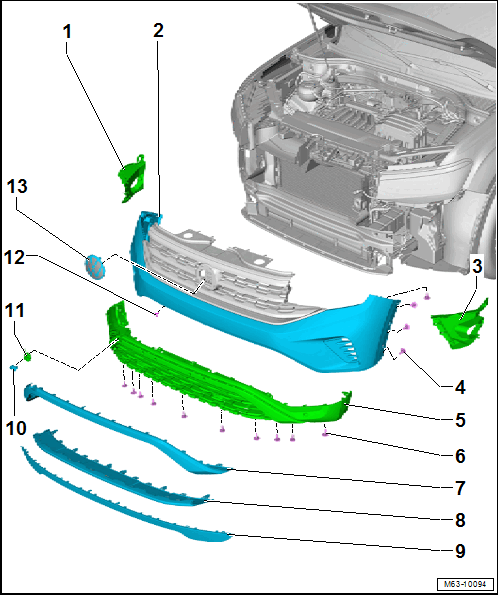

Overview - Bumper Cover, From 02/24/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Right Support Piece
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Attached to the front bumper cover
- Remove and install when the front bumper cover is removed
- Bumper Cover
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Left Support Piece
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Attached to the front bumper cover
- Remove and install when the front bumper cover is removed
- Bolt
- 2 Nm
- Quantity: 4 on each side
- Front Spoiler
- Engages with the bumper cover upper section
- To be removed only with front bumper cover removed
- Bolts
- 6 Nm
- Quantity: 10
- Impact Guard
- To be removed only with front bumper cover removed
- Impact Guard
- To be removed only with front bumper cover removed
- Spoiler
- Engaged in the front bumper cover
- To be removed only with front bumper cover removed
- Cap
- Engaged in the front towing eye cover
- Cover
- Towing eye
- Engaged in the front bumper cover
- Bolt
- 2 Nm
- Emblem
- Removing and Installing. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .
