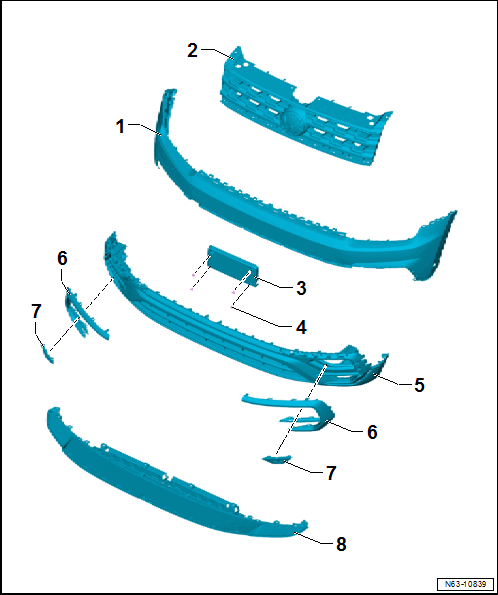

Overview - Bumper Cover Attachments, R-Line, Through 03/01/2020
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Different versions depending on the model. Refer to the appropriate Electronic Parts Information for the allocation.
- Bumper Cover
- Upper Section
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Engaged with the bumper cover lower section
- Catches are only to be released with the bumper cover removed
- Radiator Grille
- Removing and Installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
- To be removed only with front bumper cover removed
- License Plate Holder
- Not installed on all models for all markets.
- Removing and Installing. Refer to LICENSE PLATE HOLDER, REMOVING AND INSTALLING .
- Expanding Rivet
- Quantity: 4
- Front Spoiler
- Engages with the bumper cover upper section
- Catches are only to be released with the bumper cover removed
- Trim
- Left and right
- Engages with the bumper cover upper section
- Catches are only to be released with the bumper cover removed
- Cover
- Left and right for the fog lamp
- Engaged in the front bumper cover
- To be removed only with front bumper cover removed
- Extension Bracket
- Engaged in the front bumper cover
- To be removed only with front bumper cover removed
