Overview - Bumper Cover Attachments, R-Line, From 02/24/2020

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

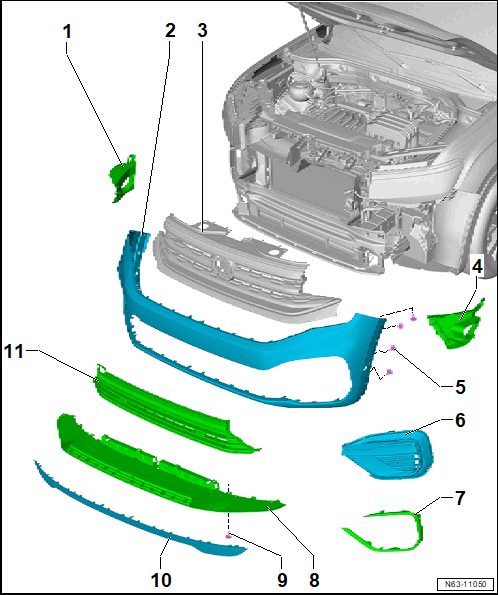

Fig 1: Exploded View Of Front Bumper Cover Attachments, R-Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Support
- Right
- Removing and Installing. Refer to SUPPORT, REMOVING AND INSTALLING .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
Support
- Left
- Removing and Installing. Refer to SUPPORT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 4 on each side
Cover
- For the bumper cover
- Removing and Installing. Refer to COVER FOR THE BUMPER COVER, REMOVING AND INSTALLING .
Trim Molding
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
Spoiler
- Front
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING .
Bolts
- 6 Nm
- Quantity: 10
Spoiler
- Lower
- Removing and Installing. Refer to LOWER SPOILER, REMOVING AND INSTALLING .
Air Grille
- Removing and Installing. Refer to AIR GRILL, REMOVING AND INSTALLING .
