-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

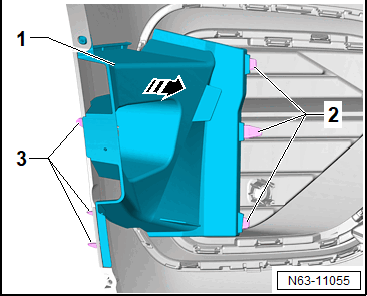

-- If equipped, free up the wires at the support -1-.
-- Release the retainers -2 and 3- using the Trim Removal Wedge:3409 .
-- Remove the support -1- in the direction of -arrow-.
