- A-Pillar End Panel. Refer to OVERVIEW - FENDER .
Installing
NOTE:

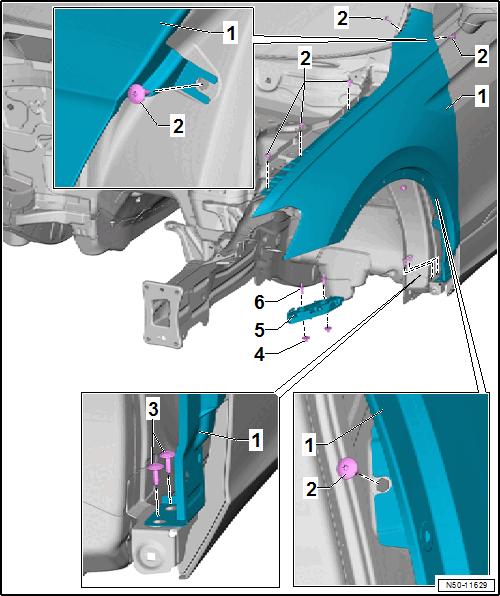

Install the fender -1- so that it is without tension.
Install in reverse order of removal.
-- Wax the threaded connection to the side sill. Refer to Applying Wax .
-- Install the A-pillar cover. Refer to A-Pillar End Panel .
-- With the fender brace loosened, align the fender without tension.
-- Insert the Zinc Spacer:AKL 381 035 50 -7- between the fender and side sills.
-- Note the parallel alignment and gap dimensions.
Tightening Specifications
- Fender. Refer to OVERVIEW - FENDER .
