Oil Spray Jets, Removing And Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Drift diameter: 4 mm
- Drift diameter: 6 mm
NOTE:
The oil spray jets are installed in crankshaft bearings 2 to 7.
Removing

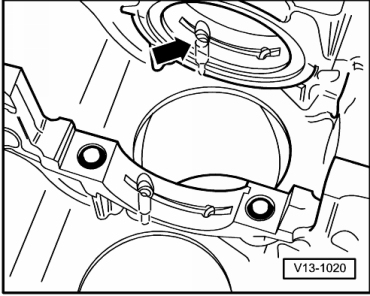

-- Using a 4 mm Diameter Drift, press the oil spray jet -arrow- toward the engine mount and out.
Installing:
-- Install the oil spray jet by hand using a 6 mm Drift.
