Overview - Emissions Control System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

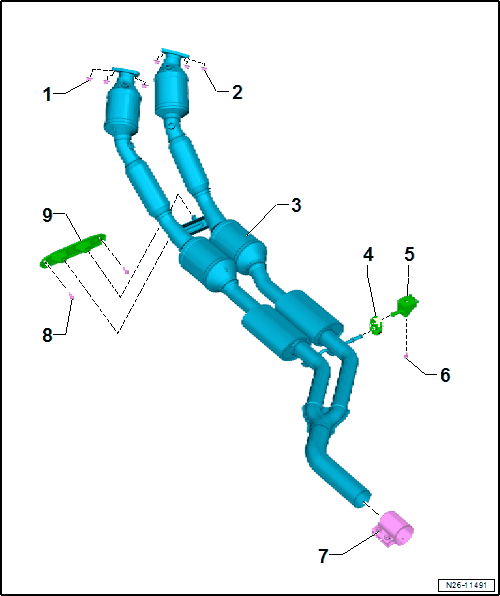

- Nuts
- 40 Nm
- Replace after removing
- Coat the threads of the stud bolts with hot bolt paste
- Nuts
- 40 Nm
- Replace after removing
- Coat the threads of the stud bolts with hot bolt paste
- Front Exhaust Pipe with Catalytic Converters and Front Mufflers
- Retaining Loop
- Replace if damaged
- Bracket
- Bolt
- 20 Nm
- Clamping Sleeve
- Installation position. Refer to Figure.
- Tighten the threaded connections evenly
- 30 Nm
- Bolts
- 20 Nm
- Exhaust System Bracket to Subframe
