Radiator, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

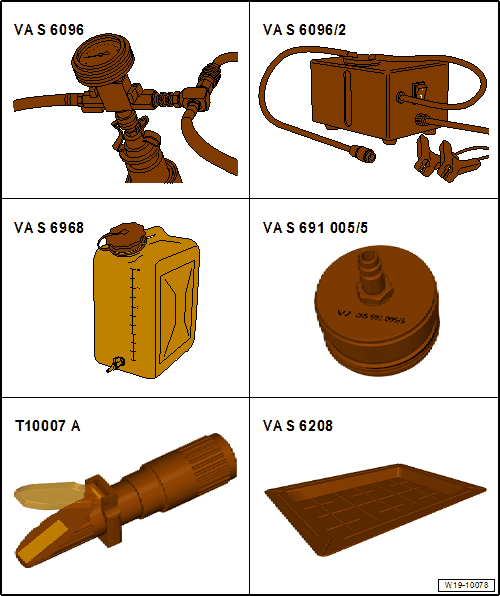

Special tools and workshop equipment required

Cooling System Charge Kit:VAS 6096
Cooling System Charge Kit - Electric Vacuum Pump:VAS 6096/2
Cooling System Charge Device:VAS 6968
Cooling System Tester - Directional Valve:VAS 691 005/5
Shop Crane - Drip Tray:VAS 6208
Refractometer:T10007 A
Hose Clamps - Up To 25 mm:3094

Fig 1: Hose Clamps
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
