Coolant, Draining And Filling: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Cooling System Charge Kit:VAS 6096
Cooling System Charge Kit - Electric Vacuum Pump:VAS 6096/2
Cooling System Charge Device:VAS 6968
Cooling System Tester - Directional Valve:VAS 691 005/5
Shop Crane - Drip Tray:VAS 6208
Refractometer:T10007 A
Hose Clamps - Up To 25 mm:3094

Fig 1: Hose Clamps
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Draining

Fig 2: Identifying Coolant Reservoir Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

The cooling system may be under pressure. There is a risk of scalding due to hot steam and hot coolant.

Scalding the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Reduce the pressure by covering the coolant expansion tank cap with a suitable towel and carefully opening it.

-- Open the coolant reservoir cap -arrow-.

-- Remove the noise insulation -1-. Refer to OVERVIEW - NOISE INSULATION .

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Disconnect the connector for the Engine Coolant Temperature Sensor -- radiator outlet on the coolant hose -1-.

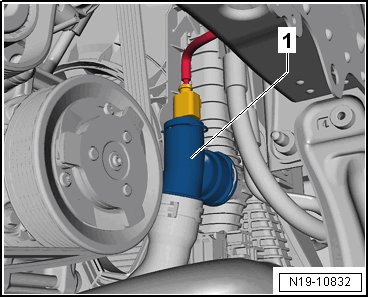

Fig 3: Identifying Coolant Hose And Lower Right Coupling

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant hose -1- from the radiator on the bottom and let the coolant drain.
