Engine Coolant Temperature Sensor on Engine Output -G82-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

The engine is cold.

-- Briefly open the coolant expansion tank cap -arrow- and release any residual pressure in the cooling system and then close it again until it locks.

Fig 1: Identifying Coolant Reservoir Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

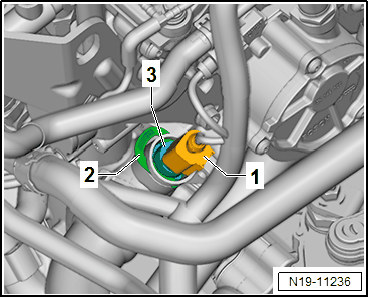

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

To prevent a lot of coolant loss, immediately insert the new Engine Coolant Temperature Sensor -- into the connecting pieces.

-- Remove the clamp -2- and remove the Coolant Temperature Sensor -- -3- from the flange.

-- Insert a new Engine Coolant Temperature Sensor -- immediately in the connection.
