Tires, Checking Tread Depth (Including Spare Tire)

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

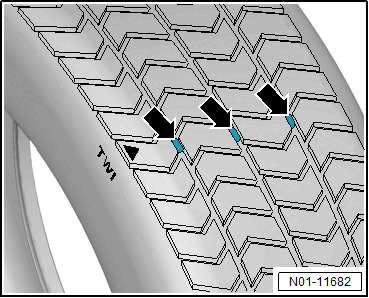

GWWN01-11682Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tread Depth, Checking

Minimum tread depth: 1.6 mm

NOTE:

Due to different legal specifications of individual countries, this value may deviate and can be requested from the respective importer.

The minimum tread depth is reached when no more profile is present at the 1.6 mm high tread wear indicators -arrows- positioned at intervals around the tire.

Inform the customer if the tread depth is nearing the legally permitted minimum tread depth.
