Led Headlamps, Adjusting

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Adjusting the headlamps is invoiced separately.

The PR number 8IR indicates that the vehicle is equipped with LED headlamps.

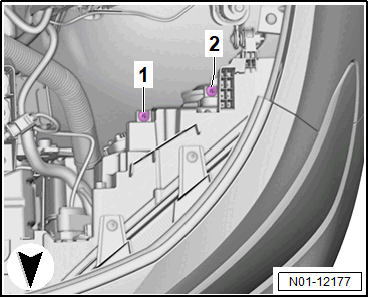

Left Headlamp, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lateral adjustment
Height adjustment

-- Turn the adjusting screw for height adjustment -2- until the correct setting is achieved.

-- Turn the adjustment screw for lateral adjustment -1- until the correct setting is achieved. The side adjustment is sealed for SAE headlamps.
