Rear Drum Brake Pads Thickness, Checking

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

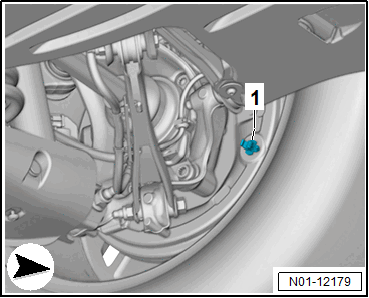

-- Remove the plug -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using a flashlight to check the drum brake brake pad thickness -a- without the backing plate, through the inspection hole -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Permissible wear: 1 mm

-- Make sure there is no brake fluid or grease on the brake shoes.

-- Install the plug -1- when the check is completed.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

At a thickness of 1 mm, brake shoes have reached their wear limit and should be replaced (repair measure).

Procedure

Rear brake shoe, replacing. Refer to BRAKE SHOES, REMOVING AND INSTALLING .
