Bracket For Fuse Panel CSC, Removing And Installing, LHD: Removing

-- Remove the fuse panel and set aside with the wires still attached. Refer to FUSE PANEL C SC, REMOVING AND INSTALLING .

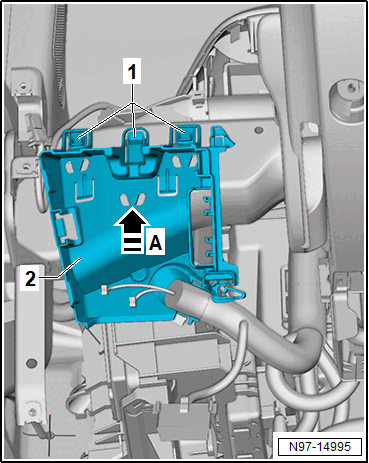

-- Disconnect the cable tie from the fuse panel bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the hook -1-.

-- Remove the fuse panel bracket -2- in the -direction of the arrow A-.
