Driver Side Instrument Panel Cover, Removing And Installing: Removing

-- Remove the driver side instrument panel side cover. Refer to Instrument Panel Side Cover, Removing and Installing .

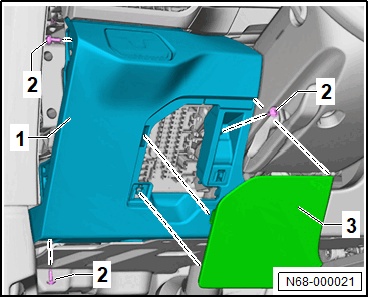

-- Unclip the fuse box cover -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2-.

-- Loosen the driver side instrument panel cover -1-.

-- Disconnect the connector.

-- Remove the driver side instrument panel cover -1-.
