Front Center Armrest, Removing And Installing: Removing

-- Remove the center console vent. Refer to OVERVIEW - DRIVER SIDE INSTRUMENT PANEL COVER .

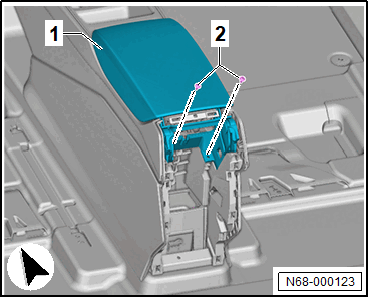

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front center armrest -1-.
