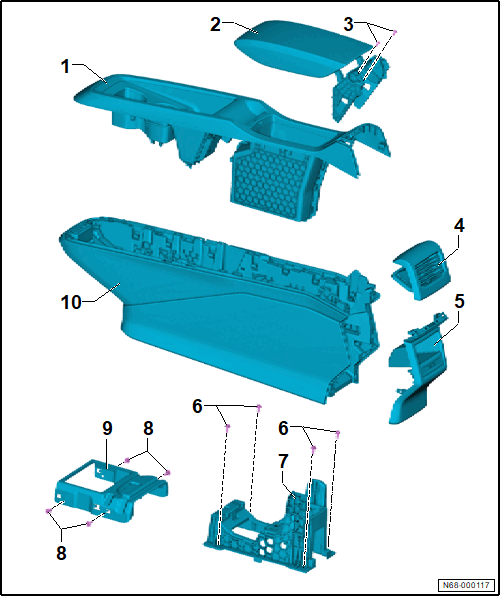

Overview - Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Console Cover
- Refer to Center Console Cover, Removing and Installing .
Front Center Armrest
- Refer to Front Center Armrest, Removing and Installing .
Bolt
- 1.5 Nm
- Quantity: 2
Rear Center Console Vent
- Refer to Rear Center Console Vent, Removing and Installing .
Center Console Rear Trim
- Refer to Center Console Rear Trim, Removing and Installing .
Bolt
- 6 Nm
- Quantity: 4
Rear Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
Bolt
- 6 Nm
- Quantity: 2
Front Center Console Bracket
- Refer to Center Console Bracket, Removing and Installing .
Center Console
- Refer to Center Console, Removing and Installing .
