Center Console, Removing And Installing: Removing

-- Remove the center console cover. Refer to Center Console Cover, Removing and Installing  .

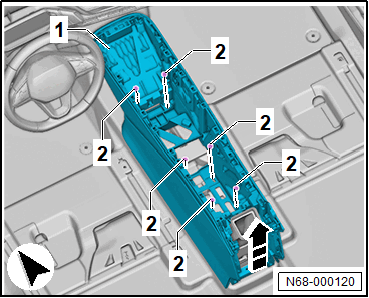

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the center console -1- in the direction of -arrow-.
