Center Console Bracket, Removing And Installing: Removing

-- Remove the front seats. Refer to Front Seat, Removing and Installing .

-- Remove the center console. Refer to Center Console, Removing and Installing  .

-- Fold the center of the carpet back.

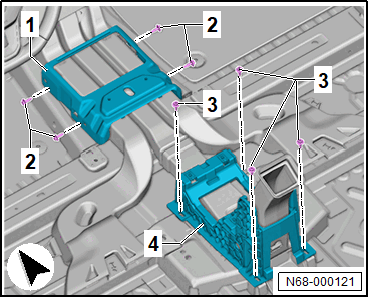

-- Remove the bolts -2 and 3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front -1- and rear -4- center console bracket.
