Battery Tray, Removing And Installing: Removing

-- Remove Battery -A-. Refer to Battery A, Removing and Installing  .

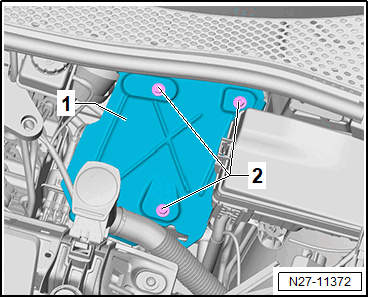

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the cable tie from the battery tray -1-.

-- Remove the battery tray -1-.
