Inner Window Shaft Strip, Removing And Installing: Removing
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
CAUTION:
There is a risk of damaging the inner window shaft strip if removal is done incorrectly.
The inner window shaft strip can twist.
- Pry out the window shaft strip carefully.

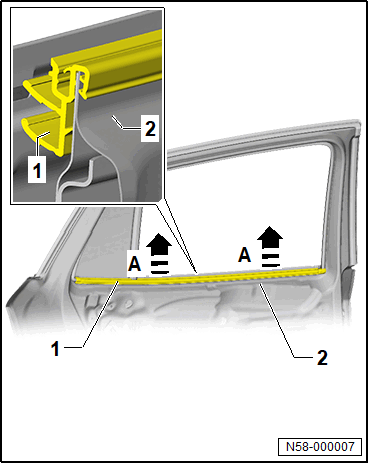

-- Pry out the inner window shaft strip -1- evenly from the door flange -2- in the direction of -arrow A- without twisting it.
