Overview - Rear Door Window

The overview shows the left side of the vehicle as an example

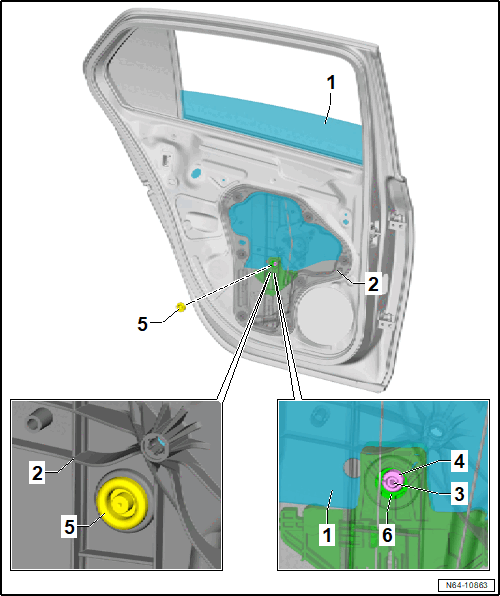

Fig 1: Rear Door Window

Courtesy of \

1. Rear Door Window
   • Refer to Fixed Rear Door Window, Removing and Installing  .
2. Carrier for Door Components
   • Refer to Overview - Carrier for Door Components .
   • Refer to SUPPORT FOR DOOR COMPONENTS, REMOVING AND INSTALLING .
3. Expanding Pin
4. Spreader Plug
5. Cap
6. Window Regulator Guide
