Overview - Fixed Rear Door Window

The overview shows the left side of the vehicle as an example

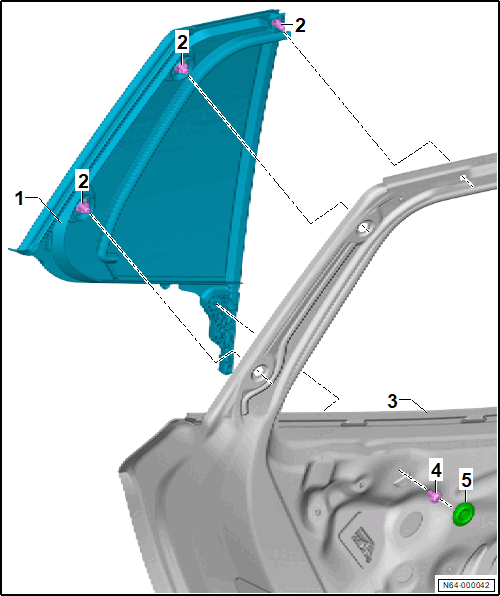

Fig 1: Fixed Rear Door Window

Courtesy of \

1. Fixed Rear Door Window
   • Refer to Fixed Rear Door Window, Removing and Installing  .
2. Clip
   • Quantity: 3
3. Rear Door
4. Bolt
   • 8 Nm
5. Cap
