Pass-Through Door, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Position the pass-through door -1- and tighten the bolts -2- only until they are hand-tight.

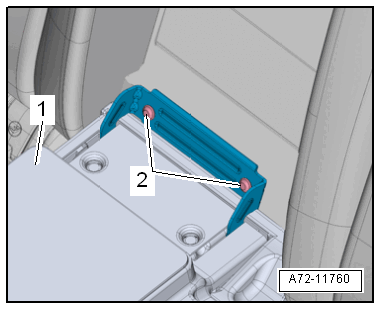

Fig 1: Bolts & Center Armrest With The Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the pass-through door and align.

-- Carefully open the pass-through door -1- and tighten the bolts -2-.
